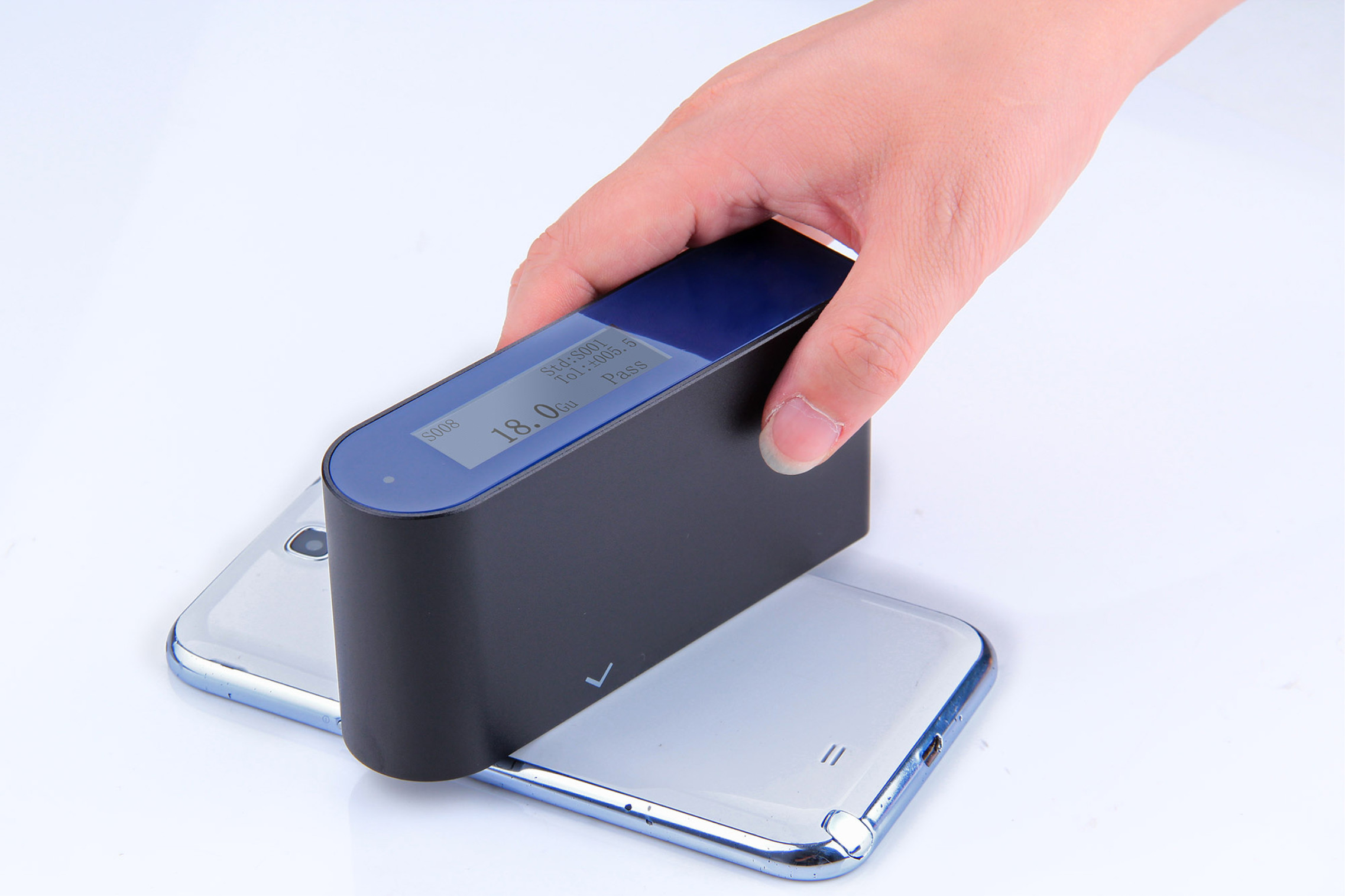

RG60 Digital Gloss Meter, measure range 0-200Gu, 60degree for paint, ink, etc

Product Name

Gloss meter

Model

RG60

Measurement Range

0-200Gu

Application

Apply on paint, ink, stoving varnish, coating, wood products; Marble, granite, vitrified polished tile, pottery brick and porcelain; Plastic, printing, paper; Other metallic material.

Instrument Dimensions

122x34x60mm

Projection Angle

60°

Measuring Spot

(ellipse: long axis*minor axis)8mm*4mm

Measuring Mode

Automatic measurement/ manual measurement/single measurement/average measurement and cross measurement for a variety of combination measuring mode

Standard Sample Setting

Manually setting/bring out stored data for setting/manually setting tolerance

Data Storage

100 groups

set standard sample in any stored data, user-define the tolerance range

Language

Chinese/English

Output

connect the micro printer to realize real-time output of measured data

Division Value

0.1Gu

Repeatability

0.2Gu

Reproducibility

0.4Gu

Indication Error

1.0Gu

International Standard 60°

ISO－2813,ASTM－C584,ASTM－D523,DIN－67530,ASTM－D2457,JND-A60,JND-P60

National Standard 60°

GB 9754,GB 9966,GB 8807

S

       Standard Accessories

Power adapter/user manual/warranty certification/standard board

Optional Accessories

micro-printer
