Wire Rope Flaw Detector, Steel Wire Rope Defect Detector, Lifting Wire Rope Inspection

Wire Rope Flaw Detector, Steel Wire Rope Defect Detector,

Lifting Wire Rope Inspection

Specification

For inspection of ropes with diameter from 1 to 300 mm (0.04" to 11.8")

Size 330 x 235 x 190 mm (13" x 9,3" x 7,5 ")

Weight 15 kg (33 lbs)

Speed along the rope during inspection - from 0 to 6 m/s (0 to 6,54 yards/s)

Features

• Dual-function: LMA and LF capability

• Speed does not affect readings

• Accurate distance wheel assembly

• Easy to install and re-install

• Easy to handle and fix on the rope

• 3 changeable hall sensor units

• Temperature range -10 +50°C

• PC software control directly, continuously testing rope length more than 10000m

• Power: AC 220V±10％

• Working temperature: -20℃～40℃

• Storage temperature: -40℃～60℃

• Relative humidity: ≤90％RH

Typical applications but not limited with:Inspection of mining ropes, aerial ropeways

(mostly ropes of chairlifts and gondola lifts), guy (suspension) ropes of bridges.

Standard accessories

Probe　　 　                     1 set　　 　

Real time alarm 　　　 　1pc

Signal cable                          1pc　　 　

RD PC analyse software 　 1set

laptop 　　　                    　 1pc 　 　

Communication cable 　       1pc

Charger　　　　                    1pc

Tool                                           1set

Instruction manual                    1set　　

TAG:  Steel Wire Rope Flaw Detector

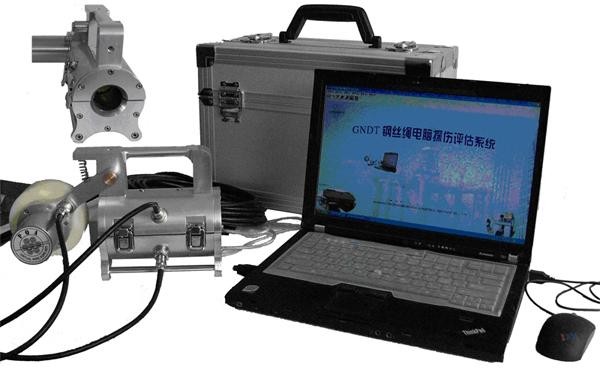

Wire Rope Flaw Detector, Steel Wire Rope Defect Detector, Lifting Wire Rope Inspection Images
