X-ray pipeline crawlers, X ray flaw detector for long pipe, X ray pipeline crawler RXPC-100A

Name: Xray pipeline crawlers X ray flaw detector for long pipe X ray pipeline crawler RXPC100A
Brand: Raytech
Price: 1 USD

Buy cheap X-ray pipeline crawlers, X ray flaw detector for long pipe, X ray pipeline crawler RXPC-100A product

Brand Name : Raytech

Model Number : RXPC-100A

Certification : ISO CE

Place of Origin : China

MOQ : 1unit

Payment Terms : Western Union, MoneyGram, T/T, L/C

Supply Ability : 100units per month

Packaging Details : Standard Export Carton

Product Name : X-ray pipeline crawlers, X ray flaw detector for long pipe, X ray pipeline crawler

Pipe diameter detecting range : Φ800—Φ1500mm

Crawler length : 2200mm

Creeping speed : 15M/min

Creeping distance : 2KM

Exposure time : 1s~1h continues adjustable

Exposure voltage : 5 selection

Total weight : 140kgs

Contact Now

X-ray pipeline crawlers, X ray flaw detector for long pipe,

X ray pipeline crawler RXPC-100A

The X-ray pipeline crawlers include the special part that can detect the welding line of long

pipeline. The X-ray pipeline crawlers have the advantages of high radiographic quality, high

imaging sensitivity, low failure rate and high work efficiency. The X-ray pipeline crawlers have

differential driving and vibration absorbers. The chassis of the X-ray pipeline crawlers can be

moved in the pipeline steadily without off center running and overturning. The X-ray pipeline

crawlers can be moved in the pipeline with great efficiency because it is controlled by PLC with

protecting it from blocking and under voltage. The X-ray pipeline crawler is easy to be separated

into several parts and then to be put together, so it is easy to carry. You can change the exposure

parameter and make the X-ray pipeline crawler move, stop and have an exposure with the

exterior controlling source. The X-ray pipeline crawlers are easy to operate.

Specification of X Ray Pipeline Crawler

Model Specification	RXPC-100A	RXPC-100B	RXPC-100C
Pipe diameter detecting range	Φ800—Φ1500mm	Φ380—Φ1016mm	Φ273—Φ700mm
Total weight	140KG	125KG	100KG
Crawler length	2200mm	2000mm	2000mm
Creeping speed	15M/min	16-18M/min	15M/min
Creeping distance	2KM	2KM	2KM
Locating error	±5mm	±5mm	±5mm
Max.output voltage	300Kv	250Kv	200Kv
Max.outout current	3mA	3mA	3mA
Climbing ability	40°	40°	25°
Radiation angle	360°*35°	360°*35°	360°*35°
Output power	1.5KW	1.25KW	1KW
Battery energy	22Ah/120V	17Ah/120V	12Ah/120V
Motor power	300W	300W	200W
Exposure time	1s~1h continues adjustable	1s~1h continues adjustable	1s~1h continues adjustable
Exposure voltage	5 selection	5 selection	5 selection
Operation temperature	-30°~ 70°	-30°~ 70°	-30°~ 70°

The crawler include below parts as standard accessories:

Main vehicle

Lead acid pile: 110V(22Ah)

X-ray machine: 250KV/5mA

Instruction source

TAG: X ray pipeline crawler

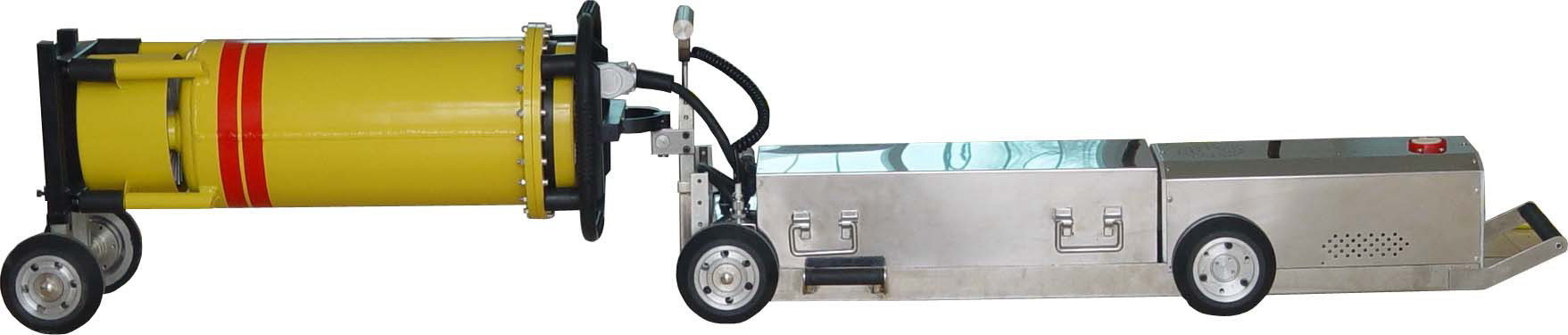

X-ray pipeline crawlers, X ray flaw detector for long pipe, X ray pipeline crawler RXPC-100A Images
