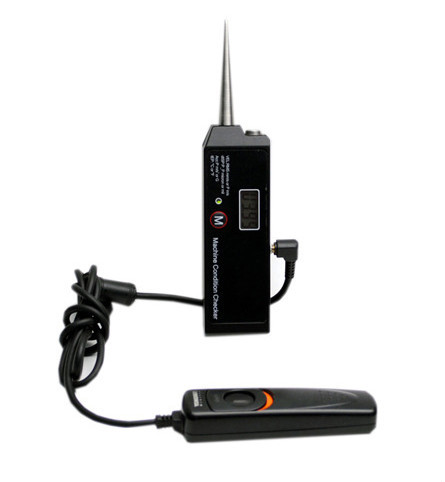

Multi-Parameter Machine Condition Checker, Vibration Meter, Digital Vibration Tester VM9091

Name: MultiParameter Machine Condition Checker Vibration Meter Digital Vibration Tester VM9091
Brand: Raytech
Price: 1 USD

Buy cheap Multi-Parameter Machine Condition Checker, Vibration Meter, Digital Vibration Tester VM9091 product

Brand Name : Raytech

Model Number : VM9091

Certification : ISO CE

Place of Origin : China

MOQ : 1unit

Payment Terms : Western Union, T/T, L/C

Supply Ability : 5000units per month

Delivery Time : 5days

Packaging Details : Standard Export Carton

Product Name : Multi-Parameter Machine Condition Checker, Vibration Meter, Digital Vibration Tester VM9091

Accuracy : + 5% + 2 digits

Acceleration : 0.1 to 100 m/s2 / 10Hz~3kHz peak

Velocity : 0.1 to 250 mm/s / 10Hz~1000Hz RMS

Displacement : 1 to 3000 µm / 10 Hz~500Hz peak-peak

Enveloped Acceleration : 0.1 to 25 unit / 5Hz~2kHz demodulated from 3kHz~10kHz

Temperature : -33 to 220 oC

Weight : 100 g (Including battery)

Contact Now

Multi-Parameter Machine Condition Checker, Vibration Meter,

Digital Vibration Tester VM9091

Multi-Parameter Machine Condition Checker, Vibration Meter, Digital Vibration Tester VM9091

Features:

1. Multi-parameter vibration, bearing parameter (acceleration envelope) & IR

temperature measuring

2. One button control power, parameter selection, measurement and holding.

3.With remote switch and magnet base to avoid handheld problem to get reliable

and consistent data.

4. Measuring vibration velocity, displacement & acceleration envelope to check

machine/bearing health

5.With magnet base and remote switch

6.Sensor included, Easy to use.

7.Automatic power off. 4 digital LCD display

8.Metal case, Robust, Reliable

Specifications:

Accuracy

+ 5% + 2 digits

Measurement Range & Frequency response:

Acceleration: 0.1 to 100 m/s2 / 10Hz~3kHz peak

Velocity:0.1 to 250 mm/s / 10Hz~1000Hz RMS

Displacement: 1 to 3000 µm / 10 Hz~500Hz peak-peak

Enveloped Acceleration:

0.1 to 25 unit / 5Hz~2kHz demodulated from

3kHz~10kHz

Temperature

-33 to 220 oC

Battery

1/2 AA, 3.6V, 20-29mA, >100 hours of continuous

operation.

Pickup

Integrated accelerometer with extension stinger and

magnet base

Dimensions

110x35x17 mm

Weight

100 g (Including battery)

Best tool for machine health evaluation according to ISO 10816-2/3:

ISO 10816-3 Machinery Group 1-4

Multi-Parameter Machine Condition Checker, Vibration Meter, Digital Vibration Tester VM9091

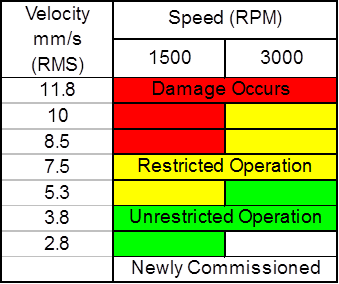

ISO 10816-2 Steam Turbines And Generators

Multi-Parameter Machine Condition Checker, Vibration Meter, Digital Vibration Tester VM9091
