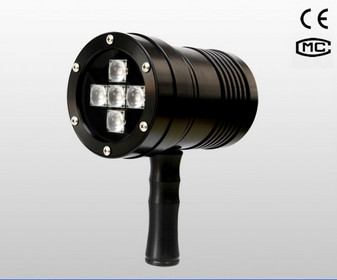

LED UV Lamps, UV inspection lamp 12w UV led torch light,
Magnetic Particle Testing RUV100D
Main Application:
Fluorescent Penetrate Testing
Fluorescent Magnetic Particle Flaw Detection
Fluorescence Leak Detection
Other Application:
Oil Stain, Blot Testing
Special Gas, Oil and Gas Pipeline Testing
Fluorescence Reflection Detection for Special Materials
Criminal Investigation and Legal Medical Expert Survey
Paper Money Authentication, Jewel Appreciation
Agriculture, Foodstuff, Medical Treatment and other relevant industries.
Features:
1, UV Series adopts high-power 365nm Ultraviolet band LED Lamp Beads produced
by Japanese NICHIA company, free from UV-B and UV-C element,spectrum is pure.
2, The lifetime of Lamp Beads reach up to 20000 hours, efficient, energy
conservation and environmental protection.
3, High power output, quick start, can reach the maximum illuminance as soon as
switched on.
4, Ultra-low power, ultra-high efficiency. Cold operated with cold light source, long
term stability output the illuminance.
5, Optical filter is high UV transmittance transparent Quartz optical glass.
6, The shell of the instrument is made of high strength aluminum alloy precision
machining. The surface is anodized, sturdy and durable.
7, The enhanced heat dissipation design can be used continuously for a long time.
8, Dedicated high-speed charger is equipped.
9, With anti magnetic interference function, it can be used in high-intensity magnetic
field.
10, The product has passed through International Standard of IEC 60529--Housing
Protection Grade(IP66) dustproof and waterproof testing, wider working
environment and more reliable.
Main parameters
| Model | RUV100D |
| Power Supply | AC or Chargeable Battery Group |
| Lamp Beads | NICHIA 365nm Ultraviolet band LED Lamp Beads |
| Lamp Bead Amount | 4 |
| Input Voltage | 100-240VAC |
| Output Power | 12W |
| Intensity of Ultraviolet Ray at 38cm Distance | ≥11000uW/cm2 |
| Irradiated Area at 38cm Distance | ￠200mm |
| Diameter of Light Inlet Window | ￠88 |
| Outline Dimension | ￠123 mm×190 mm×120 mm |
| Weight(including Battery) | 1560g |
