Diameter 300mm Digital Vertical Profile Projector, Optical
Measuring Profile Projector RVP300-1510

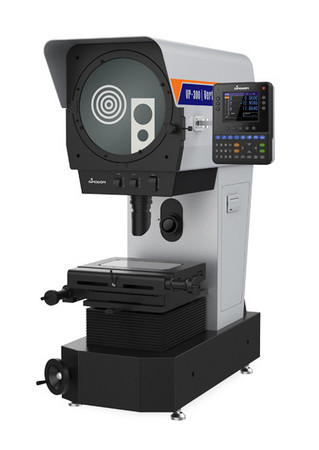

Diameter 300mm Digital Vertical Profile Projector, Optical Measuring Profile Projector RVP300-1510
Diameter 300mm Digital Vertical Profile Projector, Optical Measuring Profile Projector RVP300-1510
Diameter 300mm Digital Vertical Profile Projector, Optical Measuring Profile Projector RVP300-1510
Features:
1. The lifting system adopts cross roller rail and precision screw drive, which makes lifting drive
more comfortable and stable;
2. Coating process reflector, clearer image and great dustproof;
3. Adjustable contour and surface illumination, to meet with difference workpiece demand;
4. Imported high light and long using life LED illumination, to ensure precision measurement
demand;
5. High resolution optical system with clear image and magnification error is less than 0.08%;
6. Powerful Bi-axial fan cooling system,highly increase using life;
7. Powerful and colorful DRO DP400,realized fast and accurate 2D Measurement;
8. Built-in Mini-printer, can print and save data;
9. With standard 10X objective, optional 5X,20X,50X,100X objective,rotary table, foot
switch ,clamp, etc.
Specification:
| Reverse Image | RVP300-1510 (#511-330) | RVP300-2010 (#511-340) |
| Obverse Image | RVP300-1510Z(#511-330Z) | RVP300-2010Z(#511-340Z) |
| Metal Stage Size | 258x308mm | 258x358mm |
| Glass Stage Size | 148x206mm | 148x256mm |
| Stage Travel:X and Y-axis | 150x100mm | 200 x100mm |
| Stage Travel:Z-axis | 100mm |
| Accuracy | ≤3+L/200(um) |
| Resolution of X and Y-scale | 0.0005 mm |
| Screen | Diameter :Ø312mm,Effective Range ≥ Ø300(with “* ” Reticle) |
| Rotary Range: 0~360° ; Resolution of Rotary Indicator: 1’ or 0.01° | |
| Digital Readout | DP400 (510-340) Multifunctional Data Processing System |
| Illumination | Contour Illumination:3.2V/10W LED;Surface Illumination:3.2V/10W LED |
| Working Environment | Temp 20℃±5℃,Humidity 40％－70％RH |
| Power Supply | AC110V/60Hz; 220V/50Hz, 650W |
| Dimension(L×W×H) | 988x563x1224mm | 988x563x1224mm |
| Packing Dimension | 1200x800x1580mm | 1200x800x1580mm |
| Gross/Net weight | 220/170Kg | 220/170Kg |
