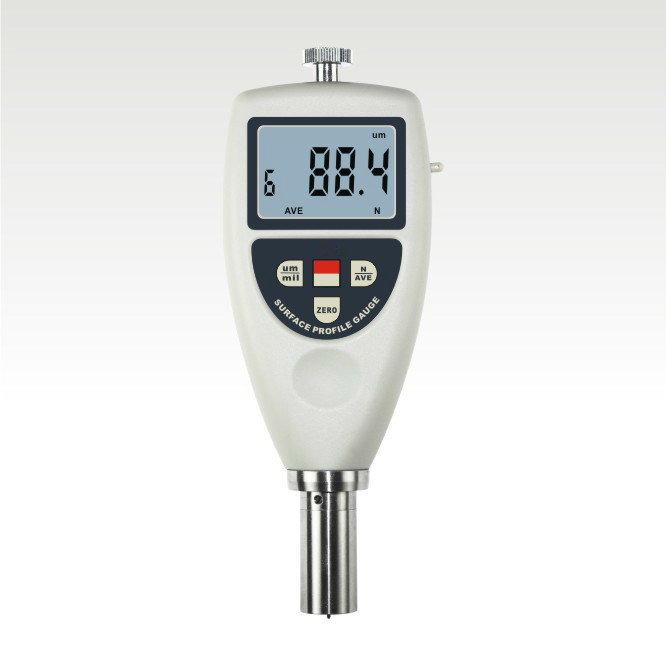

USB Bluetooth Surface Profile Tester Gauge,
Sandblasting shot peening roughness meter SRT130
USB Bluetooth Surface Profile Tester Gauge,Sandblasting shot peening roughness meter SRT130
USB Bluetooth Surface Profile Tester Gauge,Sandblasting shot peening roughness meter SRT130
USB Bluetooth Surface Profile Tester Gauge,Sandblasting shot peening roughness meter SRT130
Product Description
The Surface Profile Gauge used in Shot blasting industry, the printing industry, Spraying Anti
Corrosion Industry, According to the selected measurement conditions are calculated from the
corresponding parameters, in the liquid crystal display clearly shows all the measured
parameters.
Product Feature
* Integrated design, small volume, light weight, simple structure, easy to use, Intuitive readings
and automatic shutdown function.
* Public and imperial units converted, with the average computing power.
* With a maximum value latch, under voltage alarm indicator function.
* Direct measurement of the surface peak-trough height.
* Use USB data output with connection PC.
* Provide Bluetooth data output choice.
Product Parameters
| Resolution | 1 µm (0.1 mils) |
| Range | 0 µm ~ 750µm/(0mils to 29.5mils) |
| Measurement Speed | >30 (readings per minute) |
| Accuracy | ±5% or ±5 µm ( whichever is the greater) |
| Operating Temperature | 0~ 50°C |
| Operating Humidity | ＜80%RH |
| Size | 170x63x24 mm |
| Power Supply | 2x1.5vAAA Um-4 Battery |
| Weight | 310 g (Not including batteries) |
Product Accessories
| Standard Accessories | Main Unit |
| Zero Calibration Block |
| Carrying Case |
| Operation Manual |
| Optional Accessories | USB data output |
| Bluetooth data output |
| Standard Accessories | Main Unit |
| Zero Calibration Block |
| Carrying Case |
| Operation Manual |
| Optional Accessories | USB data output |
| Bluetooth data output |
