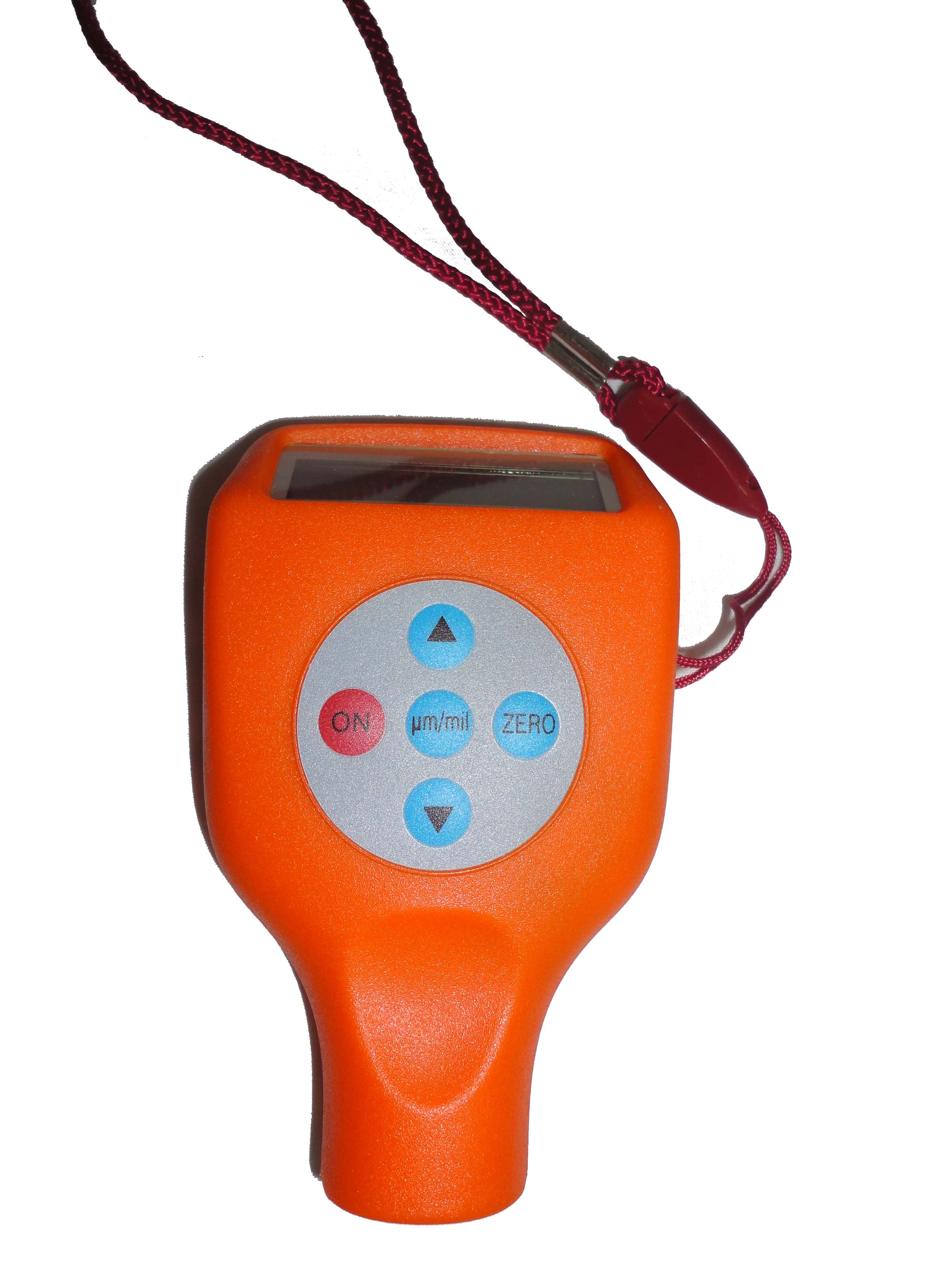

OTG-810F Painting Thickness Tester, China Coating
Thickness Gauge
Introduction
This device is a portable meter. It is capable of measuring coating thickness quickly, precisely and without
injury, both for the laboratory and engineering environment. It is currently widely used in manufacturing,
metal processing industry, chemical industry, commodity inspection and testing fields; and is essential for
material protection major.
Features
Thickness measurement using Magnetic Method to measure the non-magnetic
coating on a magnetic metal substrate.
Single-point or two-point method could be used to correct probe system deviation,
in order to ensure the accuracy of the device in the process of measuring.
Power voltage indicator.
Speaker beep while operating.
Power-off automatically when idle; manually power-off available.
Negative display function to ensure the accuracy of zero point calibration.
Ultra-low power consumption, less than 10 μA in standby mode.
Technical Data
Measuring range: 0-1250 μm
Power supply: 2 * AA batteries
Measurement deviation: zero calibration ± (1 + 3% H); two-point calibration ± [(1%
~ 3% H)] H + 1.5
Ambient temperature: 0-40 ℃
Relative humidity: ≤85%
Minimum substrate: 10 * 10mm
Minimum curvature: 5mm convex; 5mm concave
Thinnest substrate: 0.4mm
Weight: 99g (with battery)
Size: 102mm * 66mm * 24mm
Item Checklist
| Name | Quantity |
| Meter device | 1 |
| Standard films | 5 |
| Base substrate | 1 |
| Packing box | 1 |
| User Manual | 1 |
Services
This instrument has one-year quality guarantee, maintenance for all life.
If there are any problem of this product, please contact the dealer in time.
