Memory Function Coating Thickness Gauge,
NDT Paint Dry Film Thickness Meter TG-8660/S
Product Description

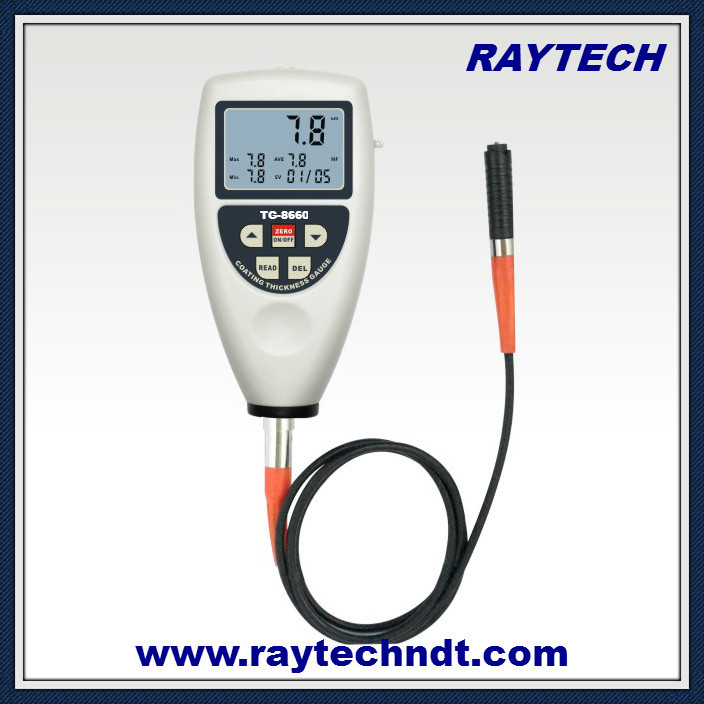

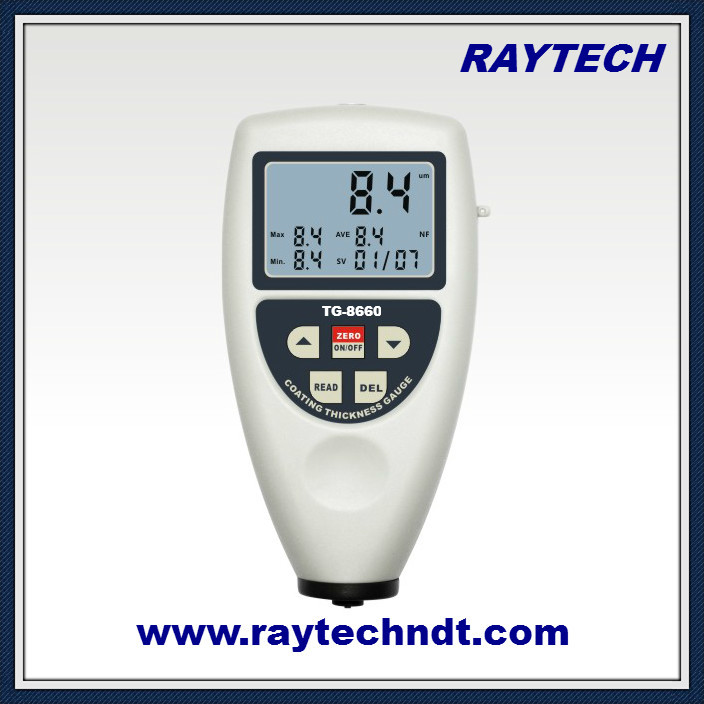

The Statistical Type Coating Thickness Gauge have two types: TG-8660( Integral Type ), TG-
8660S ( Separate Type ); can store 99 groups of the latest measurements; Integral Type suitable
for single-hand operation, large probe with large contact surface have better stability, users can
get continuous, good repetitive and precise measurements. Separate Type can provide several
type probe, measure can be more flexibility. It is a kind of portable measuring instrument, it can
quickly, no damage and precise coating, coating thickness measurement; Not only can be used
in the laboratory, also can be used in the engineering field; Through the use of different
measuring head, but also can meet the needs of a variety of measurement; Widely used in
manufacturing, metal processing industry, chemical industry, commodity inspection and testing
field; Is the material protection professional. necessary instruments.
Application:
This model includes two functions, F and N.
1. F function can measure the thickness of non-magnetic coating layers (aluminum, chrome,
copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless
steel)
2. N function can measure the thickness of non-conductive coating layers (ename1, rubber, paint,
vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin
and non-magnetic stainless steel)
Product Parameters
| Measuring Range | 0~1250 um |
| 0~50mil (other range may be specified) |
| Resolution | 0.1 um (0~99.9um)/1 um (over 100um) |
| Accuracy: | 1~3%n or 2.5 um or 0.1mil (Whichever is the greater) |
| Minimum Measurement Area | 6 mm |
| Minimal Surface | F Type convex1.5 mm / concave 25 mm |
| NF Type convex 3 mm / concave 50mm |
| Operating Condition | Temp: 0~50°C / |
| Humidity: <95% |
| Size | 120x63x25 mm |
| Power Supply | 2x1.5vAAA Um-4 Battery |
| Weight | 90 g (Not including batteries) |
Product Accessories
| Standard Accessories | Main Unit |
| Wrist Ring |
| Calibration Foils |
| Substrate ( Iron ) |
| Substrate ( Aluminium ) |
| Carrying Case |
| Operation Manual |
| Optional Accessories | USB data output |
| Bluetooth data output |
