Machinery Vibration Monitor, Vibration Measurement Machine, Vibration Testing Instrument VM908B

Name: Machinery Vibration Monitor Vibration Measurement Machine Vibration Testing Instrument VM908B
Brand: Raytech
Price: 1 USD

Buy cheap Machinery Vibration Monitor, Vibration Measurement Machine, Vibration Testing Instrument VM908B product

Brand Name : Raytech

Model Number : VM908B

Certification : ISO CE

Place of Origin : China

MOQ : 1unit

Payment Terms : Western Union, T/T, L/C

Supply Ability : 5000units per month

Delivery Time : 5days

Packaging Details : Standard Export Carton

Product Name : Hand-Held Vibration Meter, Gear Damage Tester, Bearing faults Measurement VM908

Displacement : 10-500Hz

Velocity : 10-1000Hz

Acceleration : 10-1000Hz(Inner accelerometer 908B)10-10000Hz (Depending on external accelerometer model)

Overall accuracy : +5%

Pickup : Accelerometer with handheld probe and /or magnetic base

Contact Now

Machinery Vibration Monitor, Vibration Measurement Machine,

Vibration Testing Instrument VM908B

Machinery Vibration Monitor, Vibration Measurement Machine, Vibration Testing Instrument VM908B

Features:

Measuring vibration velocity, displacement and acceleration.

Small size, transducer included, battery powered, no other component required.

Optional for inner or external Accelerometer.

One button control both power and measurement. Very easy for use.

3 1/2 LCD digital display, sampling per second.

Holding function.

Automatic power off.

Suitable for monitoring machinery vibration caused by out-of-balance, misalignment,

gear damage, bearing faults and etc.

Specifications:

Amplitude Ranges

Displacement 1—1999 µm (or 200 mil) peak-peak

Velocity 0.1—199.9 mm/s (or 20 in/s) true RMS

Acceleration 0.1—199.9 m/s2 (or 20 g) Peak

Overall accuracy

+5%

Temperature range

0 - 40 0C

Frequency response

Displacement 10-500Hz

Velocity 10-1000Hz

Acceleration 10-1000Hz(Inner accelerometer 908B)

10-10000Hz (Depending on external accelerometer model)

Battery

9V 6F22, 25 hours of continuous operation

Pickup

Accelerometer with handheld probe and /or magnetic base

Dimensions

13×6×2.3 cm

Weight

200 g

TAG: Machine Vibration Monitor

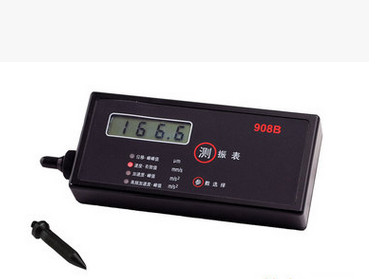

Machinery Vibration Monitor, Vibration Measurement Machine, Vibration Testing Instrument VM908B Images
