NDT Hardness Measure, LED display Micro Vickers Hardness
Tester Basic Model HV1000
Detailed Product Description
· Model HV-1000 adopts precise mechanical technique and
· photoelectrical technique.
· The tester is able to adjust and measure either strong or weak
· light source, and is capable to pressure holding time of the test
· load and is displayed by LED
· This tester adopts peculiar indentation measuring, inverting
· and read mechanism through measuring once by the
· micrometer eyepiece
· It is easy to use, and high precision in measurement
Specifications
| Test load | 0.098, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80N (10-1000kgf) |
| Load holding time | 5-60sec |
| Magnification of microscope | Measuring:400x (Object lens 40x, Eyepiece 10x) Observation:100x (Object lens 10x, Eyepiece10x) |
| Loading mechanism | Automatic loading and releasing method |
| Measuring microscope | Mechanical |
| Digital |
| Max.measuring length 150μm |
| Min.measuring unit 0.5μm |
| Max.height of specimen | Approx 65mm |
| Max.depth of specimen | Approx 85mm |
| Micro test table | Dimension:100_100mm Max.movement:25mm in X&Y axis Min .micro graduation:1/100mm |
| Digital data display | (5-2500)HV |
| Automatic recorder | |
| Photographic device | Possible to install at any time |
| Dimensions of tester | W290 ×D405×M480mm |
| Weight of tester | 25kg |
| Power supply | AC220V/110V±10% 50Hz/60Hz |
Standard delivery
Main unit 1
Micro Vickers indenter 1
10 × objective 1
40 × objective 1
Manual 1
Weight shaft 1
Cross testing table 1
Screwdriver 2
Horizontal adjusting screw 4
10× micrometer eyepiece 1
Micro Vickers hardness test block (high) 1
Micro Vickers hardness test block (medium) 1
Level 1
Lamp (6V/2 W) 2
Fuse 1A, 2A 2
Certificate 1
Manual for printer 1
Weight 6
Fine wire holder 1
Optional accessories
Depends on customer demand
TAG: LED Display Vickers Hardness Tester
Micro Hardness Meter NDT Glass Metal Hardness Testing Machine
|
|

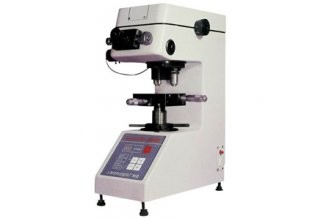

NDT Hardness Measure, LED display Micro Vickers Hardness Tester Basic Model HV1000 Images
|
