Full Automatic Micro Vickers Hardness Tester, Most Advanced
Hardness Meter HAV-1000XYZ
Detailed Product Description
1.Most advanced
2.Automatic X Y Z axis
3.PC display
4.Full Automatic output hardness values
5.None error
Main Features:
Model HAV-1000XYZ Full Automatic Micro hardness measuring system is mainly used for
a variety of metal and some non-metallic materials, micro-Vickers hardness measurement, to the
various parts (machined parts, forgings, cast iron, cast steel, etc.), non-ferrous metals and
thermal after-treatment components such as the determination of the hardness, while for the
effective case depth, coating and welding pieces of heat-affected parts of the determination. Can
also be used for a variety of metal parts within the microstructure observation and image
acquisition, display and print output.
Particularly suitable for measuring the hardness gradient curve of the workpiece automatically
play indentation.
Automatic measurement of hardness values
Auto Focus
Automatic sample X / Y / Z axis
Automatic measurement of the effective hardening curve
Hardness tester with separate and independent use of automated systems
Single measurement, volume measurement, ASTM / national standard hardness conversion
tables, the value of alarm failure
Automatically generate customized inspection reports
3 System Components:
3.1 automatic Vickers hardness measurement system units Model: HAV-1000XYZ
3.2 includes the following sections
HVS-1000 digital Vickers hardness tester
HAV-1000XYZ automatic control, measurement and data image processing system
PC computer
Usage Range:
Heat treatment, carbide, quench hardened layer, the surface coating layer, steel, non-ferrous
metal and small and thin shape parts, etc.
Technical Specifications:
Serial number of the content description
1set. HAV-1000XYZ automatic micro-hardness measurement system
An automatic turret digital micro hardness tester, Model: HVS-1000
| Test load |
0.098, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80N (10-1000kgf)
|
| Loading mechanism |
Automatic loading and releasing method
|
| Magnification of microscope |
Measuring:400x (Object lens 40x, Eyepiece 10x) Observation:100x
(Object lens 10x, Eyepiece 10x)
|
| Load holding time |
5-60sec
|
| Measuring microscope |
Mechanical
|
Digital
|
Max.measuring length 150μm
|
Min.measuring unit 0.0625μm
|
| Max.height of specimen |
Approx 65mm
|
| Max.depth of specimen |
Approx 85mm
|
| Micro test table |
Dimension:100_100mm Max.movement:25mm in X&Y axis Min.micro
graduation:1/100mm
|
| Digital data display |
(5-2500)HV
|
| Automatic recorder |
Printer
|
| Photographic device |
Possible to install at any time
|
| Dimensions of tester |
W290 x D405 x M480mm
|
| Weight of tester |
25kg
|
| Power supply |
AC220V/110V±10% 50Hz/60Hz
|
Standard delivery
Main unit 1
10 x objective 1
Weight shaft 1
Cross testing table 1
Screwdriver 2
Level 1
Fuse 1A, 2A 2
Certificate 1
Manual 1
Micro Vickers indenter 1
40 x objective 1
Weight 6
Fine wire holder 1
Horizontal adjusting screw 4
Lamp (6V/2 W) 2
Manual for printer 1
10 x micrometer eyepiece 1
Micro Vickers hardness test block (medium) 1
Optional accessories
Depending on customer demand
TAG: Micro Vickers Hardness Tester
Hardness Meter Hardness Testing Machine
|
|

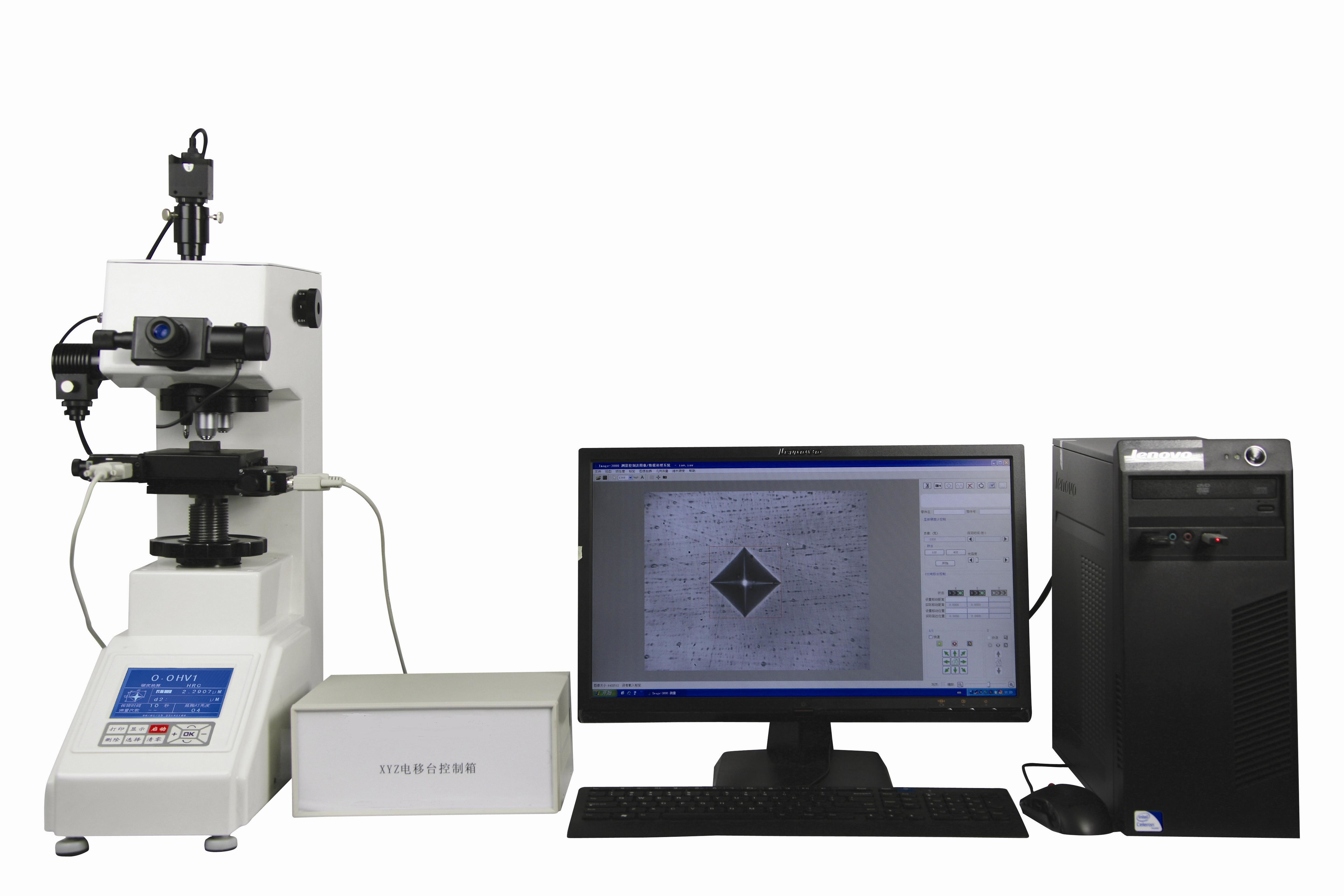

Full Automatic Micro Vickers Hardness Tester, Most Advanced Hardness Meter HAV-1000XYZ Images
|
