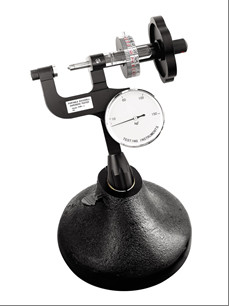

Portable Rockwell Hardness Tester, NDT Testing Instrument, Metal Hardness Meter PHR-1

Name: Portable Rockwell Hardness Tester NDT Testing Instrument Metal Hardness Meter PHR1
Brand: RAYTECH
Price: 1 USD

Buy cheap Portable Rockwell Hardness Tester, NDT Testing Instrument, Metal Hardness Meter PHR-1 product

Brand Name : RAYTECH

Model Number : PHR-1

Certification : ISO CE

Place of Origin : CHINA

MOQ : 1unit

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500units per month

Delivery Time : 5~8 working days

Packaging Details : Standard Export Carton

Product Name : Portable Rockwell Hardness Tester, NDT Testing Instrument, Metal Hardness Meter PHR-1

Initial test force : 10kgs

Total test force : 60kg,100kg,150kg

Test head : 120°diamond cone indenter,1.588mm hard alloy ball

Test resolution : 0.5HR

Test range : HRA,HRB,...HRV etc,15 scales.

Contact Now

Portable Rockwell Hardness Tester, NDT Testing Instrument,

Metal Hardness Meter PHR-1

Portable Rockwell Hardness Tester, NDT Testing Instrument, Metal Hardness Meter PHR-1

Introduction:

Portable Rockwell hardness tester complies with the basic designing principles of Rockwell

hardness testing in accordance with international standard ISO6508, American Standard ASTM

E18 and ASTM E110.
The hardness values can be read directly from the Rockwell hardness testers after rapid and

accurate operations. It can be considered as a non-destructive testing with very small

indentations. This kind of testers can be used at site to test the finished or semi-finished work

pieces piece by piece in batches. Rockwell hardness testers are mostly applied in the metal-

processing enterprises.

Features:

Small and Light, The tester is small and light. Its min weight is only 0.8kg.

Simple Operation, Operation as simple as micro-meter.

Convenient, Used on table or take out.

High Reliability, Designed by Rockwell hardness test method.

High Accuracy, As accurate as desk testers. Complying with ISO6508 and ASTM E18.

Traceable Test Block, Standard package including three standard Rockwell hardness blocks.

Indenter, Certificated indenter by standard rockwell hardness tester.

Technical Parameters:

Initial test force	10kgs
Total test force	60kg,100kg,150kg
Test head	120°diamond cone indenter,1.588mm hard alloy ball
Indication error	Complying with ISO 6508 and ASTME18
Repeatability error	Complying with ISO6508 and ASTM E18
Test resolution	0.5HR
Test range	HRA,HRB,...HRV etc,15 scales.
Application range	Common metal including iron and steel, Cu,Al,Ni,Ti,Pb,carburized layer and hard alloy,etc.
Opening size	25 × 25 mm (width × depth)
Net weight	0.8 kg
Support seat weight	1.5 kg (aluminum)
Host gross weight	2.8kgs
Support Gross Weight	1.8kgs
Host package size	330 × 255 × 150 mm
Bearing seat Packing size	233 × 215 × 148 mm
