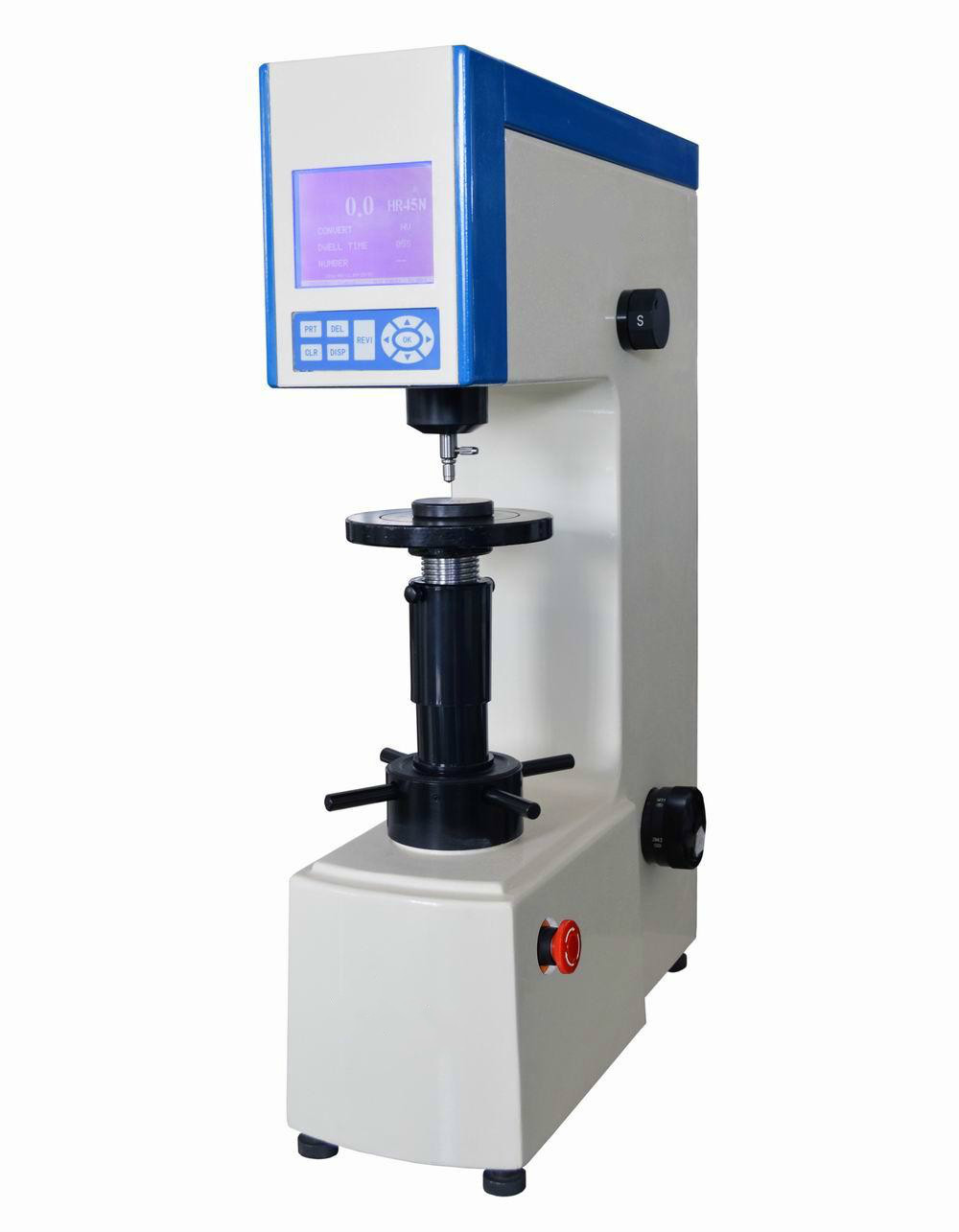

Digital Double Rockwell Hardness Tester, Steel and Surface
Rockwell Hardness Tester 560RSS
Digital Double Rockwell Hardness Tester, Steel and Surface Rockwell Hardness Tester 560RSS
Digital Double Rockwell Hardness Tester, Steel and Surface Rockwell Hardness Tester 560RSS
Digital Double Rockwell Hardness Tester, Steel and Surface Rockwell Hardness Tester 560RSS
Main Function:
560RSS Digital double Rockwell hardness tester is equipped with a newly-designed large
displaying screen with good reliability, excellent operation and easy watching, thus it is a high-
tech product combining the mechanic and electric features. It can show and set the present scale,
test force, test indenter, dwell time and hardness conversion; the main function is as follows:
Selection of all the Rockwell and superficial Rockwell scales; Conversion scales of different kinds
of hardness; Test results can be saved and printed out, automatic calculation of maximum,
minimum and average value; With RS232 interface for connecting to the computer.
Application range:
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable
cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc. Also suitable for
surface quenched steel, surface heat treating and chemical treating materials, sheet, zinc layers,
chrome layers, tin layers etc.
Technical Specification:
| Model | 560RSS |
| Initial Test Force | 3kgf (29.42N), 10kgf (98.07N) |
| Total Test Force | 15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N), 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N) |
| Indenter | Diamond Rockwell Indenter, ф1.588mmBall Indenter |
| Loading Method | Automatic (Loading/Dwell/Unloading) |
| Hardness Reading | LCD Screen Display |
| Test Scale | HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y |
| Conversion Scale | HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW |
| Data Output | Built-in Printer,RS232 Interface |
| Resolution | 0.1HR |
| Dwell Time | 0~60s |
| Max. Height of Specimen | 175mm |
| Throat | 165mm |
| Power Supply | AC220V,50Hz |
| Execute Standard | ISO 6508,ASTM E-18,JIS Z2245,GB/T 230.2 |
| Dimension | 520×215×740mm,Packing Dimension: 650×370×980mm |
| Weight | Net Weight: 80kg,Gross Weight: 100kg |
Packing List:
| Name | Qty | Name | Qty |
| Instrument Main Body | 1 set | Diamond Rockwell Indenter | 1 pc |
| ф1.588mmBall Indenter | 1 pc | Middle Plane Test Table | 1 pc |
| Large Plane Test Table | 1 pc | V-shaped Test Table | 1 pc |
| Hardness Block 60~70 HRC | 1 pc | Hardness Block 20~30 HRC | 1 pc |
| Hardness Block 80~100 HRB | 1 pc | Hardness Block70~85 HR30T | 1 pc |
| Hardness Block 65~80 HR30N | 1 pc | Weight 1, 2, 3, 4, 5 | 5 pcs |
| Power Cable | 1 pc | Fuse 2A | 2 pcs |
| Level | 1 pc | Horizontal Regulating Screw | 4 pcs |
| Screw Driver | 1 pc | Spanner | 1 pc |
| Anti-dust Cover | 1 pc | Usage Instruction Manual | 1 copy |
