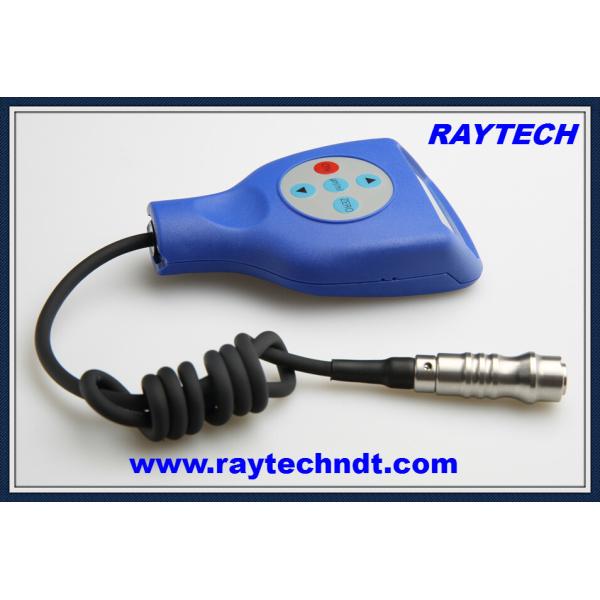

TG-820F Coating Thickness Gauge, Painting Thickness Meter, Paint Thickness Tester



TG-820F Coating Thickness Gauge, Painting Thickness

Meter, Paint Thickness Tester




Introduction

This device is a portable meter. It is capable of measuring coating thickness quickly, precisely and without

injury, both for the laboratory and engineering environment. It is currently widely used in manufacturing,

metal processing industry, chemical industry, commodity inspection and testing fields; and is essential for

material protection major.


Features

 Thickness measurement using Magnetic Method to measure the non-magnetic coating on a magnetic

metal substrate.

 Single-point or two-point method could be used to correct probe system deviation, in order to ensure the

accuracy of the device in the process of measuring.

  Power voltage indicator.

  Speaker beep while operating.

  Power-off automatically when idle; manually power-off available.

  Negative display function to ensure the accuracy of zero point calibration.

  Ultra-low power consumption, less than 10 μA in standby mode.


Technical Data

  Measuring range: 0-1250 μm

  Power supply: 2 * AA batteries

  Measurement deviation: zero calibration ± (1 + 3% H); two-point calibration ± [(1% ~ 3% H)] H + 1.5

Ambient temperature: 0-40 ℃

  Relative humidity: ≤85%

  Minimum substrate: 10 * 10mm

  Minimum curvature: 5mm convex; 5mm concave

  Thinnest substrate: 0.4mm

  Weight: 99g (with battery)

  Size: 102mm * 66mm * 24mm


Item Checklist














Services

This instrument has one-year quality guarantee, maintenance for all life. If there are any problem of this

product, please contact the dealer in time.
