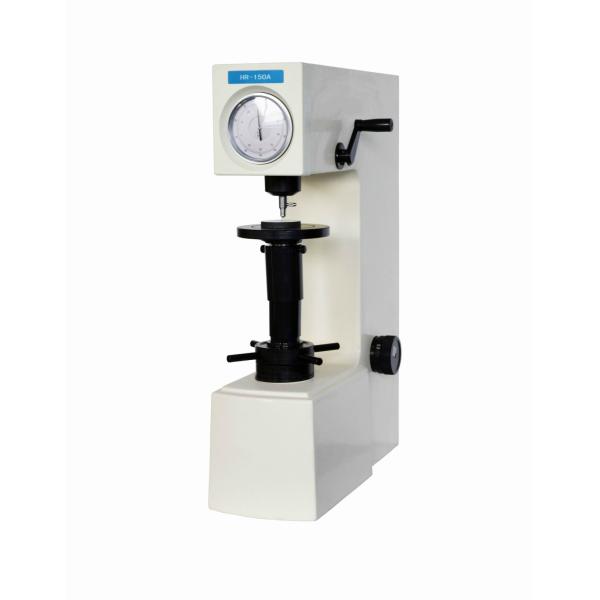

Manual Load, Dial Hardness Reading, Not need Power
Supply Rockwell Hardness Tester HR-150A
Main Function:
HR-150A Rockwell hardness tester is a popularly-used hardness testing instrument to measure
the Rockwell hardness of the materials. No need for power supply, the speed of the test force
loading is regulated by the buffer and the test force is regulated by the load-change hand wheel. It
has easy operation and stable performance, therefore it is widely used.
Application range:
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable
cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc.
Technical Specification:
| Model | HR-150A |
| Initial Test Force | 10kgf (98.07N) |
| Total Test Force | 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N) |
| Indenter | Diamond Rockwell Indenter, ф1.588mmBall Indenter |
| Loading Method | Manual |
| Hardness Reading | Dial |
| Resolution | 0.5HR |
| Max. Height of Specimen | 175mm |
| Throat | 165mm |
| Execute Standard | ISO 6508,ASTM E-18,JIS Z2245,GB/T 230.2 |
| Dimension | 520×245×700mm,Packing Dimension: 650×370×950mm |
| Weight | Net Weight: 78kg,Gross Weight: 100kg |
Packing List:
| Name | Qty | Name | Qty |
| Instrument Main Body | 1 set | Diamond Rockwell Indenter | 1 pc |
| ф1.588mmBall Indenter | 1 pc | Middle Plane Test Table | 1 pc |
| Large Plane Test Table | 1 pc | V-shaped Test Table | 1 pc |
| Hardness Block 60~70 HRC | 1 pc | Hardness Block 20~30 HRC | 1 pc |
| Hardness Block 80~100 HRB | 1 pc | Weight A, B, C | 3 pcs |
| Anti-dust Cover | 1 pc | Usage Instruction Manual | 1 copy |
